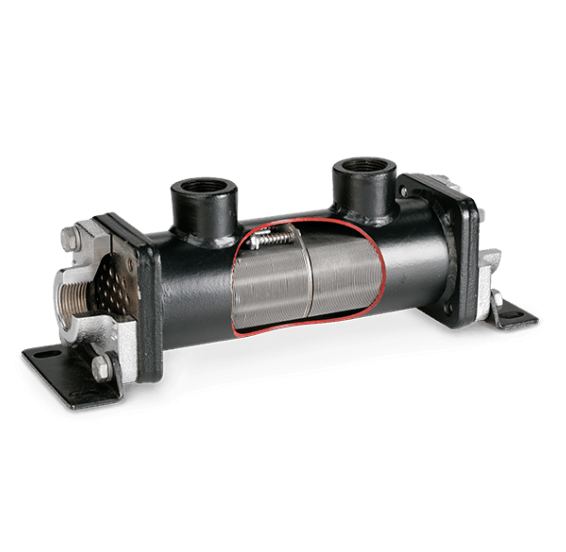

Thermal Transfer Products EK series shell and tube heat exchanger

The Thermal Transfer Products EK series (i.e. green cooler) is a high-efficiency heat exchange product in the water-cooled product series. For the product, the surface of the aluminum finned tube bundle is increased so that the optimal heat exchange effect can be achieved at a low water flow rate, and the seawater service options are also available. The low cost and compact structure effectively reduce the occupied area, ensuring that the product is particularly suitable for use in the hydraulic power unit with high requirements for the efficiency, economy and adaptability of cooling equipment.

Thermal Transfer Products<sup></sup> EK series shell and tube heat exchanger
Quotation Request
  • *
  • *
  • *
  • *
Product Features Applicable industries Product Specification Product Document Recommended Products
Applicable industriesApplicable industries

Applicable industries

  • Industrial equipment
  • Construction machinery
  • Mining machinery
  • Commercial vessel
  • Marine engineering equipment



Applicable scenarios

  • Hydraulic/lubricating oil cooling
Product SpecificationProduct Specification
  • Technical parameters
    • Maximum shell-side pressure: 35 bar
    • Maximum tube-side pressure: 10 bar
    • Maximum temperature: 121°C
  • Material and process
    • Heat exchange tube: Copper/copper-nickel
    • Fin: Aluminum
    • Tube sheet: Carbon steel/copper-nickel
    • Tube box: Cast iron (chemical nickel-plating allowed)
